| Model number: |
Lithium Barrel Pump |
| Rated current: |
8A |
| Rated voltage: |
24V |
| Power: |
420W |
| Rated frequency: |
50HZ |
| Synchronous speed: |
400r/min |

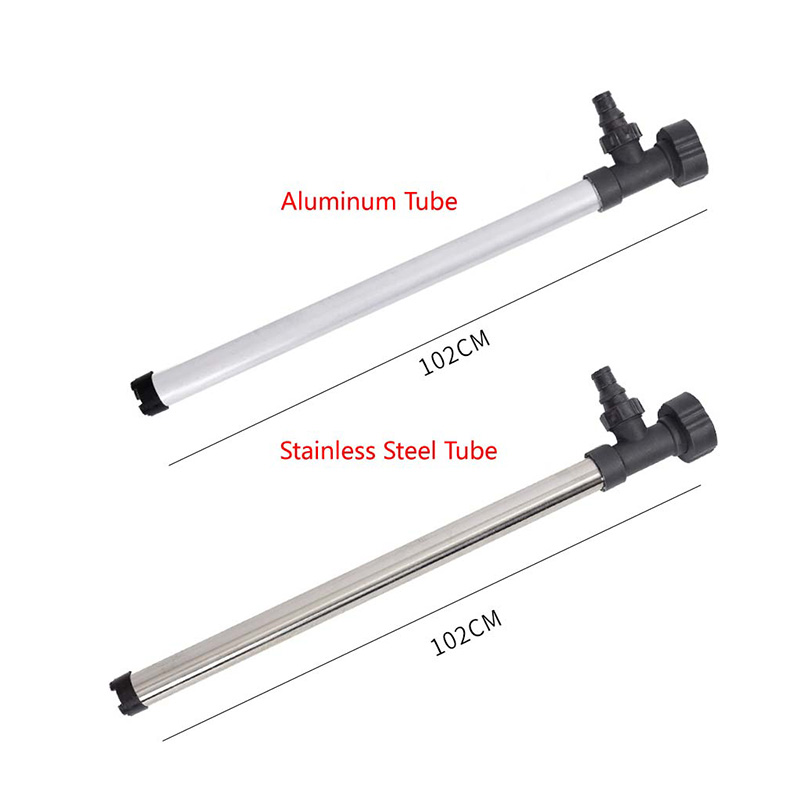

| Tube material: |
Aluminum alloy(adjustable speed) |
| Hose material: |
PVC + Steel wire |
| Pump material: |
Steel+Copper+Plastic |
| Motor winding resistance: |
High temperature copper wire |
| Synchronization pumping speed: |
170L/min |
| Dimensions of the device: |
23*130*4cm |
| Power cord length: |
1.5m |
| Pump suited barrel sizes: |
Barrel height maximun 0.92m |
| Can pump diesel, engine oil, hydraulic oil, chemicals, edible oil, kerosene, sewing oil and beverages（Medium and low viscosity liquid） |
| Non pumped liquids: flammable liquid such as gasoline, high temperature liquid such as sulfuric acid, etc. |
| The pH value of pumping liquid has no definite value, mainly according to the type of liquid. |
| Integrated motor type: |
SB |
| The temperature range of pumped liquid: |
Ten degrees below zero to forty degrees |
| Don't have a NSP (zero voltage release) |
| Waterproof, not explosion-proof |
| Net weight: |
4kg |
| Packing method: |
color box + export carton |
| Gift box size (L*W*H) |
120*33.5*12.5cm |
| Carton size (L*W*H) |
121.5*36*57cm/4pcs |
| N.W/G.W |
18.5kgs/19.3kgs |
